NASA GLOBE Cloud Protocol Satellite Match

Purpose:

Image of eath and satellite
Satellites can only capture a top-down view of our planet. We need your ground observations to complement what the satellite cannot see, for example, cloud bases, ground cover, and multiple cloud layers.







Your Role:



We want to match your ground observations of clouds with Earth observing satellites. Review how to make and submit cloud observations with the cloud protocol or the eTraining slides. Some satellites are always observing the same location of the Earth while others are observing the entire planet. Your location is important to determine when to best make your observations. Visit the Satellite Overpass Schedule to see when to best make your ground observations.

All observations matched to satellite data are used in research. In the "Cloud Research" video NASA scientist Dr. Brant Dodson explains how your observations are used in research and the importance of your GLOBE cloud observations.



Satellite Match Email:

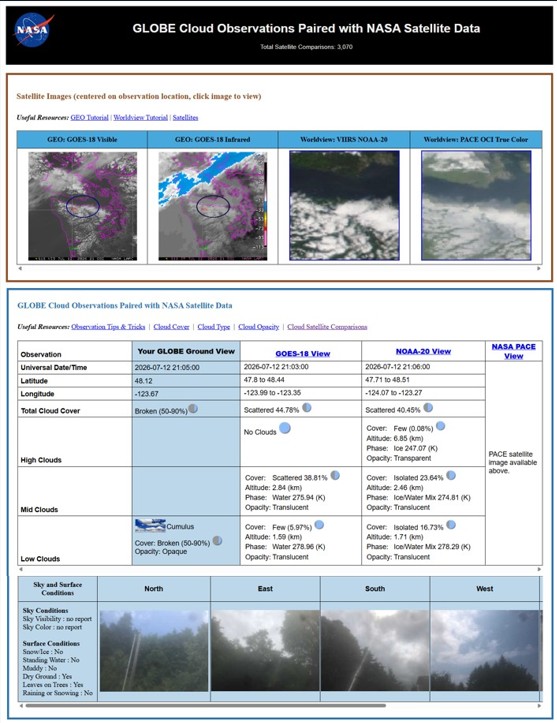

Observations that coincide with satellite observations will receive a ‘match’ email. The satellite match email summarizes both ground and satellite observations. Ground cloud observations help NASA better understand satellite data even though they may not agree. Discrepancies should be investigated but do not imply an error on the part of the observer. The NASA GLOBE Clouds team prepared this "Satellite Matching" video that explains how to read the satellite match table and how to identify discrepancies between the satellite and your observations.



GLOBE Clouds and Satellite Matched Data:



When a GLOBE Clouds observation is taken within 15 minutes of a satellite overpass, the data are matched to NASA satellite data for further analysis. The GLOBE Clouds data and matching satellite data are provided as CSV files in the GLOBE Observer webpage. These data files include all cloud data received by GLOBE and matched to satellite data by the NASA Langley Research Center’s GLOBE Clouds team.

Note: Version 2.0 data includes additional satellite matches after a correction to the code used for matching, an error pointed out by a regular GLOBE Observer contributor. The window before or after a satellite overpass to match with ground data was incorrectly set at 0.15 hours (9 minutes) rather than the full 15 minutes (0.25 hours) intended. All data starting from 2017-01-01 has been reprocessed using the new code, resulting in an additional 54,000+ satellite matches, a 36% increase.

Learn More:



-Find more information about Earth observing satellites

-Satellite Match Frequently Asked Questions
